Camera Class Reference

#include <Camera.h>

Inherited by DepthOfFieldCamera, and PerspectiveCamera.

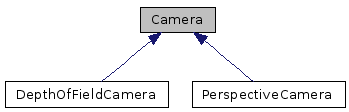

Inheritance diagram for Camera:

[legend]Collaboration diagram for Camera:

[legend]List of all members.

Public Member Functions
	Camera (Vec3f pos, int resX, int resY)
virtual	~Camera ()
virtual Ray	initRay (float x, float y)=0
const Vec3f &	pos () const
int	resX () const
int	resY () const
virtual void	setPos (Vec3f pos)=0
virtual void	setDir (Vec3f dir)=0
virtual void	setUp (Vec3f up)=0
virtual const Vec3f &	up () const=0
virtual const Vec3f &	dir () const=0
virtual const float	focusDistance () const=0
virtual const float	aperture () const=0
virtual int	depthSamples () const=0
virtual void	setDepthSamples (unsigned int)=0
virtual void	setFocusDistance (float f)=0
virtual void	setAperture (float a)=0
virtual void	setSlowCorrect ()=0
virtual void	setFastIncorrect ()=0
Protected Attributes
Vec3f	mPos
	Position.
int	mResX
	X resolution.
int	mResY
	Y resolution.

---

Detailed Description

Abstract base class for all cameras

Author:

Christian Engels

Definition at line 12 of file Camera.h.

---

Constructor & Destructor Documentation

Camera::Camera	(	Vec3f	pos,
		int	resX,
		int	resY
	)			[inline]

Constructor

Parameters:

	pos	Position of the camera
	resX	X resolution
	resY	Y resolution

Definition at line 21 of file Camera.h.

virtual Camera::~Camera

(

)

[inline, virtual]

Destructor

Definition at line 32 of file Camera.h.

---

Member Function Documentation

virtual Ray Camera::initRay	(	float	x,
		float	y
	)			[pure virtual]

Initialize a ray for pixel. Fractional coordinates are possible

Parameters:

	x	X coordinate of the pixel
	y	Y coordinate of the pixel

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

const Vec3f& Camera::pos

(

)

const [inline]

Get camera position

Definition at line 45 of file Camera.h.

References mPos.

Referenced by CameraInstructionMove::execute(), DepthOfFieldCamera::initRay(), PerspectiveCamera::setPos(), and DepthOfFieldCamera::setPos().

int Camera::resX

(

)

const [inline]

Get X resolution

Definition at line 52 of file Camera.h.

References mResX.

Referenced by Renderer::render().

int Camera::resY

(

)

const [inline]

Get Y resolution

Definition at line 59 of file Camera.h.

References mResY.

Referenced by Renderer::render().

virtual void Camera::setPos

(

Vec3f

pos

)

[pure virtual]

sets the position of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setDir

(

Vec3f

dir

)

[pure virtual]

sets the viewing direction of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setUp

(

Vec3f

up

)

[pure virtual]

sets the up vector of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual const Vec3f& Camera::up

(

)

const [pure virtual]

gets the up vector of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual const Vec3f& Camera::dir

(

)

const [pure virtual]

gets the dir vector of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual const float Camera::focusDistance

(

)

const [pure virtual]

gets the focus distance of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual const float Camera::aperture

(

)

const [pure virtual]

gets the aperture of the camera

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual int Camera::depthSamples

(

)

const [pure virtual]

Get the number of samples we use for Depth of Field effect

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setDepthSamples

(

unsigned

int

)

[pure virtual]

sets the number of samples we use for Depth of Field effect

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setFocusDistance

(

float

f

)

[pure virtual]

set the focus distance

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setAperture

(

float

a

)

[pure virtual]

sets the aperture

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

Referenced by CameraInstructionMove::execute().

virtual void Camera::setSlowCorrect

(

)

[pure virtual]

enables the slow algorithm

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

virtual void Camera::setFastIncorrect

(

)

[pure virtual]

enables the fast algorithm

Implemented in DepthOfFieldCamera, and PerspectiveCamera.

---

Member Data Documentation

Vec3f Camera::mPos [protected]

Position.

Definition at line 118 of file Camera.h.

Referenced by PerspectiveCamera::initRay(), DepthOfFieldCamera::initRay(), pos(), PerspectiveCamera::setPos(), and DepthOfFieldCamera::setPos().

int Camera::mResX [protected]

X resolution.

Definition at line 121 of file Camera.h.

Referenced by PerspectiveCamera::initRay(), DepthOfFieldCamera::initRay(), resX(), PerspectiveCamera::setDir(), DepthOfFieldCamera::setDir(), PerspectiveCamera::setUp(), and DepthOfFieldCamera::setUp().

int Camera::mResY [protected]

Y resolution.

Definition at line 124 of file Camera.h.

Referenced by PerspectiveCamera::initRay(), DepthOfFieldCamera::initRay(), resY(), PerspectiveCamera::setDir(), DepthOfFieldCamera::setDir(), PerspectiveCamera::setUp(), and DepthOfFieldCamera::setUp().

---

The documentation for this class was generated from the following file:

• src/Camera.h

---
