Shader Class Reference

#include <Shader.h>

Inherited by CombineShader, CookTorranceShader, DebugShader, MirrorShader, PhongShader, ProceduralShader, RefractiveShader, and TransparentShader.

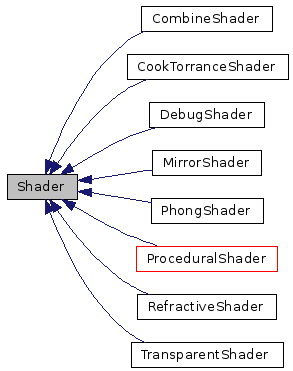

Inheritance diagram for Shader:

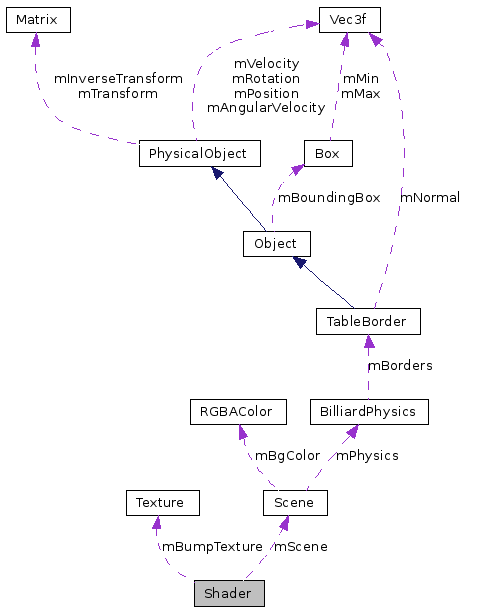

[legend]Collaboration diagram for Shader:

[legend]List of all members.

Public Member Functions
	Shader (Scene *scene)
virtual	~Shader ()
virtual RGBAColor	shade (const Ray &ray) const=0
unsigned int	textureCount () const
void	addTexture (Texture *tex)
void	removeTexture (Texture *tex)
const Texture *	texture (unsigned int i) const
const Texture *	bumpTexture () const
void	setBumpTexture (Texture *tex)
const Vec3f	normal (const Ray &ray) const
void	setBumpCoefficient (const float f)
float	bumpCoefficient () const
Protected Attributes
Scene *	mScene
	Scene pointer to retrieve data.
std::vector< Texture * >	mTextures
	List of textures used in this shader.
Texture *	mBumpTexture
	Bump Mapping Texture.
float	mBumpCoeff
	Bump Mapping coefficient.

---

Detailed Description

Abstract base class for all shaders. FIXME split textures to TexturedShader

Author:

Christian Engels

Definition at line 18 of file Shader.h.

---

Constructor & Destructor Documentation

Shader::Shader

(

Scene *

scene

)

Constructor

Parameters:

scene

a pointer to the scene

Definition at line 11 of file Shader.cpp.

virtual Shader::~Shader

(

)

[inline, virtual]

Destructor

Definition at line 29 of file Shader.h.

---

Member Function Documentation

virtual RGBAColor Shader::shade

(

const Ray &

ray

)

const [pure virtual]

Calculate color of the hit point

Implemented in CloudShader, CombineShader, CookTorranceShader, DebugShader, MirrorShader, PhongShader, RefractiveShader, TransparentShader, and WoodShader.

Referenced by Primitive::shade().

unsigned int Shader::textureCount

(

)

const

Get number of textures used by the shader

Definition at line 20 of file Shader.cpp.

References mTextures.

Referenced by PhongShader::shade(), DebugShader::shade(), CombineShader::shade(), and texture().

void Shader::addTexture

(

Texture *

tex

)

Add new texture to the shader

Definition at line 25 of file Shader.cpp.

References mTextures.

Referenced by CombineShaderFactory::create(), CookTorranceShaderFactory::create(), and PhongShaderFactory::create().

void Shader::removeTexture

(

Texture *

tex

)

Remove texture from the shader (Note: Pointer is not deleted)

Definition at line 31 of file Shader.cpp.

References mTextures.

const Texture * Shader::texture

(

unsigned int

i

)

const

Get texture according to the index (start from 0)

Definition at line 42 of file Shader.cpp.

References mTextures, and textureCount().

Referenced by DebugShader::shade().

const Texture * Shader::bumpTexture

(

)

const

Returns the BumpMapping texture

Definition at line 49 of file Shader.cpp.

References mBumpTexture.

void Shader::setBumpTexture

(

Texture *

tex

)

sets the BumpMapping texture

Definition at line 55 of file Shader.cpp.

References mBumpTexture.

Referenced by RefractiveShaderFactory::create(), CookTorranceShaderFactory::create(), PhongShaderFactory::create(), MirrorShaderFactory::create(), WoodShaderFactory::create(), and CloudShaderFactory::create().

const Vec3f Shader::normal

(

const Ray &

ray

)

const

Get normal for the right object considering Bump Mapping if a bumptexture is set

Definition at line 60 of file Shader.cpp.

References Primitive::axes(), Ray::hit(), mBumpCoeff, mBumpTexture, Vec3f::normal(), Primitive::normal(), RGBAColor::r(), Texture::resX(), Texture::resY(), Primitive::texCoord(), Texture::texel(), TexCoordinate::x(), and TexCoordinate::y().

Referenced by CookTorranceShader::distribution(), CookTorranceShader::geometry(), RefractiveShader::shade(), PhongShader::shade(), MirrorShader::shade(), and CookTorranceShader::shade().

void Shader::setBumpCoefficient

(

const float

f

)

[inline]

Set the bump mapping coefficient which says how strong the bump mapping should be applied

Definition at line 68 of file Shader.h.

References mBumpCoeff.

Referenced by RefractiveShaderFactory::create(), CookTorranceShaderFactory::create(), PhongShaderFactory::create(), MirrorShaderFactory::create(), WoodShaderFactory::create(), and CloudShaderFactory::create().

float Shader::bumpCoefficient

(

)

const [inline]

returns the bump mapping coefficient, which says how strong the bump mapping should be applied

Definition at line 75 of file Shader.h.

References mBumpCoeff.

---

Member Data Documentation

Scene* Shader::mScene [protected]

Scene pointer to retrieve data.

Definition at line 82 of file Shader.h.

Referenced by TransparentShader::shade(), RefractiveShader::shade(), PhongShader::shade(), MirrorShader::shade(), and CookTorranceShader::shade().

std::vector<Texture *> Shader::mTextures [protected]

List of textures used in this shader.

Definition at line 85 of file Shader.h.

Referenced by addTexture(), removeTexture(), PhongShader::shade(), CookTorranceShader::shade(), CombineShader::shade(), texture(), and textureCount().

Texture* Shader::mBumpTexture [protected]

Bump Mapping Texture.

Definition at line 88 of file Shader.h.

Referenced by bumpTexture(), normal(), and setBumpTexture().

float Shader::mBumpCoeff [protected]

Bump Mapping coefficient.

Definition at line 91 of file Shader.h.

Referenced by bumpCoefficient(), normal(), and setBumpCoefficient().

---

The documentation for this class was generated from the following files:

• src/Shader.h
• src/Shader.cpp

---
