Primitive Class Reference

#include <Primitive.h>

Inherited by InfinitePlane, Sphere, and Triangle.

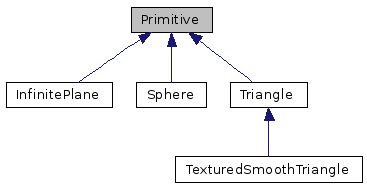

Inheritance diagram for Primitive:

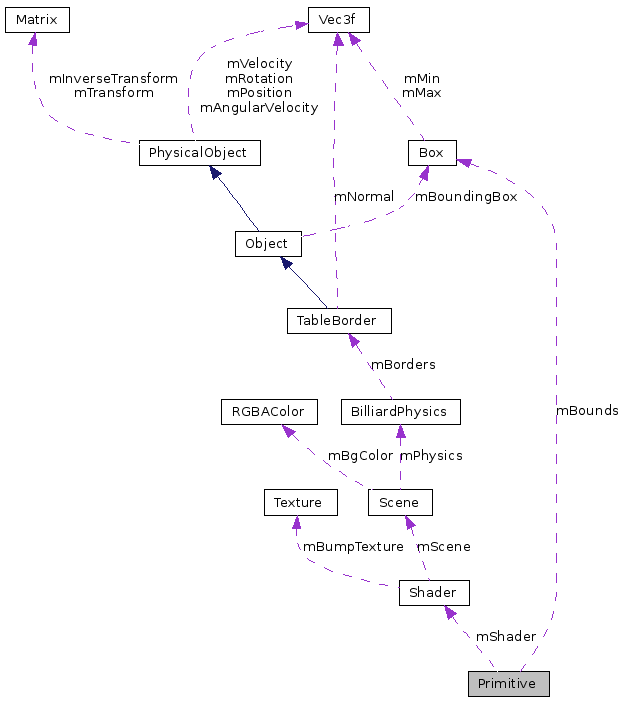

[legend]Collaboration diagram for Primitive:

[legend]List of all members.

Public Member Functions
	Primitive ()
virtual	~Primitive ()
virtual bool	intersect (Ray &ray) const=0
virtual Vec3f	normal (const Ray &ray) const=0
virtual TexCoordinate	texCoord (const Ray &) const
const Shader *	shader () const
void	setShader (Shader *sh)
const Box &	bounds () const
virtual RGBAColor	shade (const Ray &ray) const
bool	castShadows () const
void	setCastShadows (bool cs)
virtual void	axes (const Ray &ray, Vec3f &x, Vec3f &y) const=0
Protected Member Functions
virtual void	calcBounds ()=0
Protected Attributes
Box	mBounds
	Bounding box.
Shader *	mShader
	Associated shader.
bool	mCastShadows
	If this primitive casts shadows.

---

Detailed Description

Abstract base class for all primitives

Author:

Alex Busenius

Christian Engels

Definition at line 21 of file Primitive.h.

---

Constructor & Destructor Documentation

Primitive::Primitive

(

)

[inline]

Constructor. Every subclass should call calcBounds() in there

Definition at line 26 of file Primitive.h.

virtual Primitive::~Primitive

(

)

[inline, virtual]

Destructor

Definition at line 35 of file Primitive.h.

---

Member Function Documentation

virtual bool Primitive::intersect

(

Ray &

ray

)

const [pure virtual]

Intersection test with this primitive

Implemented in InfinitePlane, Sphere, and Triangle.

virtual Vec3f Primitive::normal

(

const Ray &

ray

)

const [pure virtual]

Calculate a normal in global coordinates given barycentric coordinates of the hitpoint

Returns:

the normal of the ray with the apropiate position

Implemented in InfinitePlane, Sphere, TexturedSmoothTriangle, and Triangle.

Referenced by Shader::normal(), and DebugShader::shade().

virtual TexCoordinate Primitive::texCoord

(

const Ray &

)

const [inline, virtual]

Returns:

the Texture Coordinate

Reimplemented in Sphere, and TexturedSmoothTriangle.

Definition at line 51 of file Primitive.h.

Referenced by Shader::normal(), WoodShader::shade(), PhongShader::shade(), DebugShader::shade(), CookTorranceShader::shade(), CombineShader::shade(), and CloudShader::shade().

const Shader* Primitive::shader

(

)

const [inline]

Returns:

the shader

Definition at line 58 of file Primitive.h.

References mShader.

Referenced by Scene::rayTrace().

void Primitive::setShader

(

Shader *

sh

)

[inline]

sets the shader

Definition at line 66 of file Primitive.h.

References mShader.

Referenced by SphereObject::setShader().

const Box& Primitive::bounds

(

)

const [inline]

Get bounds of this box

Returns:

the bounding box

Definition at line 76 of file Primitive.h.

References mBounds.

Referenced by SimpleKDTree::buildTree(), SphereObject::calcBounds(), SAHKDTree::generateEvents(), and SimpleKDTree::setBestSplit().

virtual RGBAColor Primitive::shade

(

const Ray &

ray

)

const [inline, virtual]

Returns:

The color the shader shades

Definition at line 83 of file Primitive.h.

References mShader, and Shader::shade().

Referenced by Scene::rayTrace().

bool Primitive::castShadows

(

)

const [inline]

Do we cast shadows?

Definition at line 91 of file Primitive.h.

References mCastShadows.

Referenced by QuadAreaLight::illuminate(), and PointLight::illuminate().

void Primitive::setCastShadows

(

bool

cs

)

[inline]

Set cast shadows property

Definition at line 98 of file Primitive.h.

References mCastShadows.

Referenced by SphereObject::setCastShadows().

virtual void Primitive::axes	(	const Ray &	ray,
		Vec3f &	x,
		Vec3f &	y
	)			const [pure virtual]

gives axis of the triangle (perpenticular to the normal) this is used in bump mapping

See also:

Shader::normal()

Implemented in InfinitePlane, Sphere, and Triangle.

Referenced by Shader::normal().

virtual void Primitive::calcBounds

(

)

[protected, pure virtual]

Calculate primitive bounds

Implemented in InfinitePlane, Sphere, and Triangle.

---

Member Data Documentation

Box Primitive::mBounds [protected]

Bounding box.

Definition at line 111 of file Primitive.h.

Referenced by bounds(), Triangle::calcBounds(), Sphere::calcBounds(), and InfinitePlane::calcBounds().

Shader* Primitive::mShader [protected]

Associated shader.

Definition at line 114 of file Primitive.h.

Referenced by setShader(), shade(), and shader().

bool Primitive::mCastShadows [protected]

If this primitive casts shadows.

Definition at line 117 of file Primitive.h.

Referenced by castShadows(), and setCastShadows().

---

The documentation for this class was generated from the following file:

• src/Primitive.h

---
