Collision Struct Reference

#include <Collision.h>

Inherited by BallCollision, and BorderCollision.

Inheritance diagram for Collision:

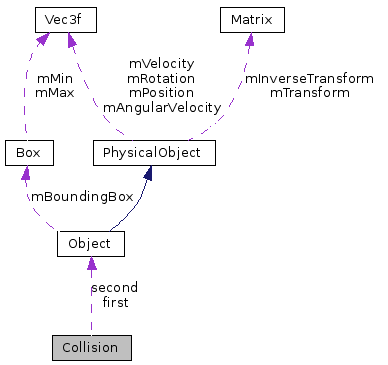

[legend]Collaboration diagram for Collision:


Public Member Functions
	Collision (float t, Object o1, Object o2)
virtual	~Collision ()
virtual void	collide ()=0
bool	isAffected (Collision *another)
std::string	dump () const
Static Public Member Functions
static bool	compare (const Collision c1, const Collision c2)
static bool	ucompare (const Collision c1, const Collision c2)
static bool	predicate (const Collision c1, const Collision c2)
Public Attributes
float	time
	Time when collision occurs.
Object *	first
	First object.
Object *	second
	Second object.

Detailed Description

Abstract collision struct to simplify sorting of collision list and provide unified collision processing

Author:: Alex Busenius

Definition at line 17 of file Collision.h.

Constructor & Destructor Documentation

Collision::Collision	(	float	t,
		Object *	o1,
		Object *	o2
	)			`[inline]`

Init constructor

Definition at line 32 of file Collision.h.

virtual Collision::~Collision ( ) [inline, virtual]

Destructor

Definition at line 43 of file Collision.h.

Member Function Documentation

static bool Collision::compare	(	const Collision *	c1,
		const Collision *	c2
	)			`[inline, static]`

Comparision operator for sorting

Definition at line 49 of file Collision.h.

References time.

Referenced by BilliardPhysics::createCollisionList(), and BilliardPhysics::updateCollisionList().

static bool Collision::ucompare	(	const Collision *	c1,
		const Collision *	c2
	)			`[inline, static]`

Comparision operator for duplicate removal

Definition at line 58 of file Collision.h.

References first, and second.

Referenced by BilliardPhysics::updateCollisionList().

static bool Collision::predicate	(	const Collision *	c1,
		const Collision *	c2
	)			`[inline, static]`

Predicate for duplicate removal

Definition at line 68 of file Collision.h.

References first, and second.

Referenced by BilliardPhysics::updateCollisionList().

virtual void Collision::collide ( ) [pure virtual]

Simulate a collision and update object properties

Implemented in BallCollision, and BorderCollision.

bool Collision::isAffected ( Collision * another ) [inline]

Test if this collision is affected by another collision. A collision is affected if it happens after another collision and one of the objects is contained in the other collision too

Definition at line 81 of file Collision.h.

References first, and second.

std::string Collision::dump ( ) const

Write to stream

Definition at line 16 of file Collision.cpp.

References first, Object::name(), second, and time.

Referenced by BallCollision::BallCollision(), BorderCollision::BorderCollision(), BorderCollision::collide(), and BallCollision::collide().
