CameraInstructionMove Class Reference

#include <CameraInstructions.h>

Inherits CameraInstructions.

Inheritance diagram for CameraInstructionMove:

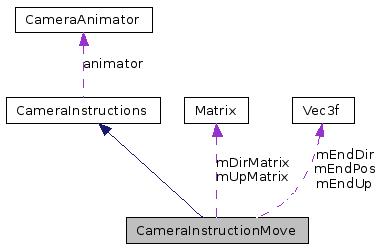

[legend]Collaboration diagram for CameraInstructionMove:

[legend]List of all members.

Public Member Functions
	CameraInstructionMove (CameraAnimator *anim, Vec3f end, Vec3f dir, Vec3f up, float aperture, float distance, unsigned int depthsamples, unsigned int framesleft, unsigned int camnum)
virtual	~CameraInstructionMove ()
virtual void	execute ()
Private Attributes
Vec3f	mEndPos
	the position after the move
Vec3f	mEndDir
	the direction after the move
Vec3f	mEndUp
	the up vector after the move
float	mEndAperture
	the aperture after the move
float	mEndFocusDistance
	the focus distance after the move
unsigned int	mEndDepthSamples
	the number of depth samples after the move
unsigned int	mFramesLeft
	the number of frames left in this move
unsigned int	mCameraNumber
	the camera number
Matrix	mDirMatrix
	the matrix for calculating the directory change
Matrix	mUpMatrix
	the matrix for calculating the up vector change
bool	mRuned
	bool for checking if we run already, for setting up the matrizes

---

Detailed Description

implements a simple move by moving the camera a step until no frames are left

Definition at line 38 of file CameraInstructions.h.

---

Constructor & Destructor Documentation

CameraInstructionMove::CameraInstructionMove	(	CameraAnimator *	anim,
		Vec3f	end,
		Vec3f	dir,
		Vec3f	up,
		float	aperture,
		float	distance,
		unsigned int	depthsamples,
		unsigned int	framesleft,
		unsigned int	camnum
	)

Constructor

Parameters:

	anim	The animator pointer
	end	The ending position
	dir	the ending direction
	up	the ending up vector
	aperture	the ending aperture
	distance	the ending distance
	depthsamples	the number of samples at the end of the animation
	framesleft	the number of frames the animation should last
	camnum	the number of the camera

Definition at line 7 of file CameraInstructions.cpp.

virtual CameraInstructionMove::~CameraInstructionMove

(

)

[inline, virtual]

Definition at line 54 of file CameraInstructions.h.

---

Member Function Documentation

void CameraInstructionMove::execute

(

)

[virtual]

ececutes the move and increments the pc if no frames are left

Implements CameraInstructions.

Definition at line 23 of file CameraInstructions.cpp.

References CameraInstructions::animator, Camera::aperture(), Vec3f::cross(), Camera::depthSamples(), Camera::dir(), Vec3f::dot(), EPSILON, Camera::focusDistance(), LOG, mCameraNumber, CameraAnimator::mCameras, mDirMatrix, mEndAperture, mEndDepthSamples, mEndDir, mEndFocusDistance, mEndPos, mEndUp, mFramesLeft, CameraAnimator::mPC, mRuned, mUpMatrix, Vec3f::normal(), Camera::pos(), Camera::setAperture(), Camera::setDepthSamples(), Camera::setDir(), Camera::setFocusDistance(), Camera::setPos(), Camera::setUp(), Matrix::transformVector(), and Camera::up().

---

Member Data Documentation

Vec3f CameraInstructionMove::mEndPos [private]

the position after the move

Definition at line 62 of file CameraInstructions.h.

Referenced by execute().

Vec3f CameraInstructionMove::mEndDir [private]

the direction after the move

Definition at line 63 of file CameraInstructions.h.

Referenced by execute().

Vec3f CameraInstructionMove::mEndUp [private]

the up vector after the move

Definition at line 64 of file CameraInstructions.h.

Referenced by execute().

float CameraInstructionMove::mEndAperture [private]

the aperture after the move

Definition at line 65 of file CameraInstructions.h.

Referenced by execute().

float CameraInstructionMove::mEndFocusDistance [private]

the focus distance after the move

Definition at line 66 of file CameraInstructions.h.

Referenced by execute().

unsigned int CameraInstructionMove::mEndDepthSamples [private]

the number of depth samples after the move

Definition at line 67 of file CameraInstructions.h.

Referenced by execute().

unsigned int CameraInstructionMove::mFramesLeft [private]

the number of frames left in this move

Definition at line 68 of file CameraInstructions.h.

Referenced by execute().

unsigned int CameraInstructionMove::mCameraNumber [private]

the camera number

Definition at line 69 of file CameraInstructions.h.

Referenced by execute().

Matrix CameraInstructionMove::mDirMatrix [private]

the matrix for calculating the directory change

Definition at line 70 of file CameraInstructions.h.

Referenced by execute().

Matrix CameraInstructionMove::mUpMatrix [private]

the matrix for calculating the up vector change

Definition at line 71 of file CameraInstructions.h.

Referenced by execute().

bool CameraInstructionMove::mRuned [private]

bool for checking if we run already, for setting up the matrizes

Definition at line 72 of file CameraInstructions.h.

Referenced by execute().

---

The documentation for this class was generated from the following files:

• src/CameraInstructions.h
• src/CameraInstructions.cpp

---
